Software Defined Radio

Overview

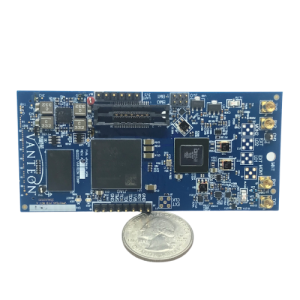

The vProteanâ„¢ is a flexible, high-performance wideband Software Defined Radio (SDR) platform designed for signal intelligence, multi-band RF processing, and advanced wireless communication applications. Built with a configurable RF front end, the vProtean supports adjustable frequency and bandwidth parameters to accommodate a wide range of dynamic signal environments.

At its core, the vProtean integrates the Analog Devices ADRV9004 RF transceiver for optimal narrowband performance and wide frequency coverage. Coupled with the Xilinx Zynq-7020 FPGA, the platform delivers powerful signal processing and embedded control in a compact, adaptable design—making it ideal for both prototyping and deployed RF systems.

vProtean Platform Features

The vProteanâ„¢ platform combines signal processing power, RF flexibility, and synchronization capability to support advanced wideband Software Defined Radio (SDR) applications. Designed for performance and adaptability, vProtean offers the following key features:

• Xilinx Zynq-7020 FPGA
  Delivers high-performance, low-latency signal processing in a compact, programmable architecture ideal for embedded RF systems.

• Dual Embedded ARM Cortex-A9 Processors
  Integrated within the Zynq core, these processors enable real-time control, system management, and custom application development.

• ADI ADRV9004 Wideband RF Transceiver
  A highly integrated RF transceiver from Analog Devices that supports a wide frequency range with excellent narrowband performance.

• Performance-Enhancing RF Front End (RFFE)
  Custom-designed RFFE improves signal quality and transceiver performance across variable RF environments.

• Multi-Chip Synchronization Support
  Enables precise timing and phase alignment across multiple SDRs—essential for phased arrays, MIMO systems, and scalable RF deployments.

Export Control
For export classification purposes vProtean SoMs, evaluation kits, and its underlying IP are classified under the following U.S. Export Control Classification Number (ECCN): 5A991.b.

vProtean Performance Specifications

The vProteanâ„¢ delivers high-performance wideband Software Defined Radio (SDR) capabilities in a compact, low-power design. Engineered for signal intelligence, embedded RF development, and scalable wireless systems, vProtean offers the following key specifications:

• Configurable RF Front End with 20 dBm Transmit Power
  Supports dynamic RF conditions with strong signal output and tunable performance.

• Wide Frequency Range: 30 MHz to 6000 MHz
  Enables operation across a broad spectrum for multi-band and wideband communication.

• Instantaneous Bandwidth: 12 kHz to 40 MHz
  Accommodates both narrowband and wideband signal acquisition and processing.

• Low Power Consumption
  Optimized for energy efficiency in embedded and mobile RF systems.

• Dual Transmit and Receive (2 TX / 2 RX) Operation
  Full-duplex capability supports complex RF workflows and bidirectional communication.

• Compact Form Factor (9.0 cm x 4.2 cm)
  Space-efficient design for integration into size-constrained applications.

• Accessible USB and Ethernet Host Interface Pins
  Facilitates flexible data connectivity and system integration options.

• On-Board Memory
  Includes 256 Mb Flash and 4 Gb DDR3 SDRAM for high-speed data storage and signal processing.

• UART and SPI Debug Ports
  Supports system monitoring, development, and easy integration into custom workflows.

Unlock the Power of the vProtean SDR

The vProteanâ„¢ from Vanteon is a versatile and compact wideband Software Defined Radio (SDR) platform built for signal intelligence, multi-band processing, and embedded RF system development. Whether you’re designing flexible wireless solutions, conducting real-time signal monitoring, or deploying scalable RF architectures, the vProtean delivers the performance and adaptability to meet your project’s demands.

Vanteon offers the vProtean IP for licensing, enabling integration into custom hardware designs. For rapid evaluation and deployment, System-on-Modules (SOMs) and evaluation kits are available directly from Vanteon.

Contact us today to explore how the vProtean SDR platform can advance your next RF innovation.

Use Cases

Resources

Download Release 3.6 and Stay Up to Date on Vanteon’s IP

Submit the information below for a download of the latest software for vProtean. Vanteon will use this information to provide you with periodic updates about vProtean and our other products and services. You may unsubscribe at any time.

Customize vProtean with Vanteon’s Design Services

Have an application that requires a modification not listed above? Reach out to us and we can customize any of our vProtean SDRs to meet your needs.

Vanteon has been offering electronic engineering services since 1985. We have a diverse team of software, firmware, hardware, and RF engineers ready to customize our vProtean Solutions for your specific application. Vanteon’s IP offerings can be used to jumpstart your project.

Licensable Soft-Cores

Are you looking for assistance with your waveform or software design? Starting from Vanteon’s module library, we can customize a software solution for you. With a design services contract, Vanteon offers a range of soft cores for license, including:
